Flexim™ Ultrasonic Clamp-On Flow Meter
Non-Intrusive, Clamp-on Ultrasonic Technology

Non-Intrusive, Clamp-on Ultrasonic Technology

Emerson’s Flexim Non-Intrusive Ultrasonic flow measurement technologies enable operators to simply attach the transducer to the outside of the pipe – without any interruption to operations, or any risk of leakage.

Read our expert article

Title Goes Here
Title Goes Here

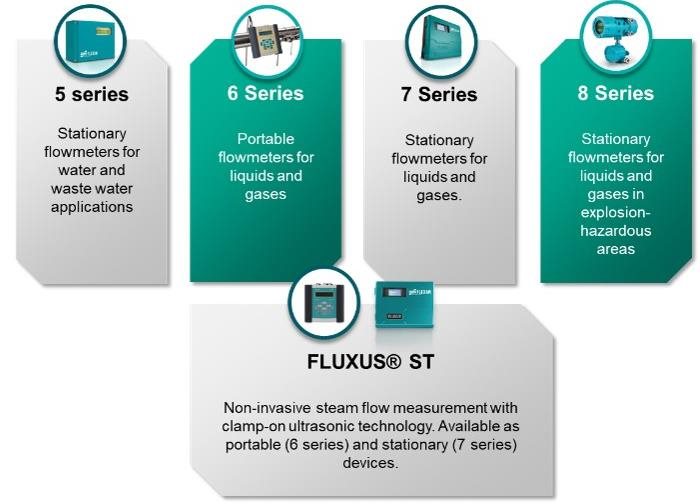

FLOWMETERS

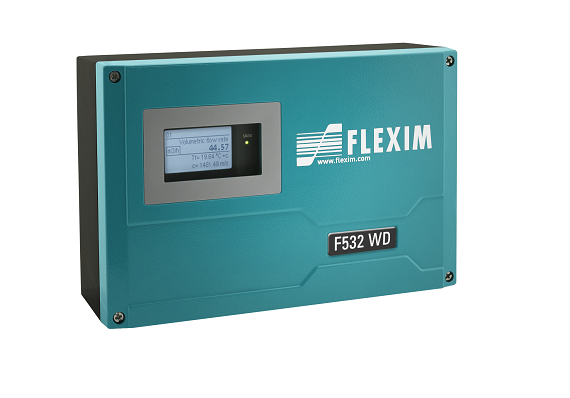

  • Water and Waste Water Applications
    4-series (portable) and 5-series (stationary)
  • Liquids and Gases:
    6-series (portable) and 7-series (stationary)
  • Liquids and Gases in explosion-hazardous areas:
    8-series (stationary)
  • Steam flow measurement:
    FLUXUS ST, available in portable (6-series) and stationary (7 series) devices

PROCESS ANALYZERS

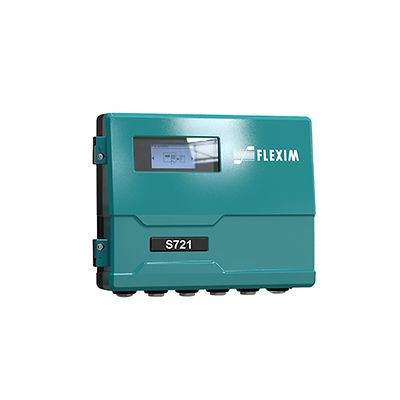

  • PIOX® S
    Non-invasive determination of concentration, density and mass flow with clamp-on ultrasonic technology

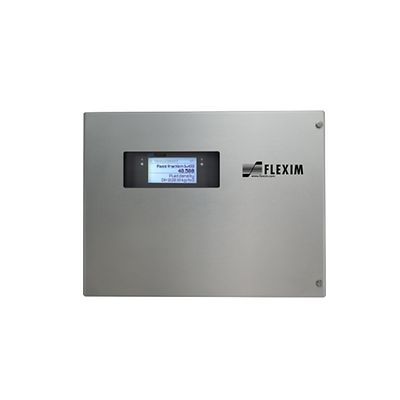

  • PIOX® R
    Process refractometer concentration measurement through inline-refractometry with laboratory accuracy
  • FLUXUS® S831
    Available as a vriant of the FluXus® series. Non-invasive measurement of media-specific data of hydrocarbons as well as media identification
Fluxus G721
GAS FLOWMETER

Fluxus G721

The FLUXUS G721 clamp-on gas flow meter offers non-intrusive flow measurement:

  • virtually any kind of gas (from natural gas to process gases).
  • over a wide pipe diameter range (from 0.25 to 80 inches), independent of wall thickness, material and internal pressurization.
  • no maximum pressure limitation and starting from as low as 45 psi at steel lines and below atmospheric pressure at plastic pipes).
  • Even hot gas up to +390°F isn't a challenge for the FLUXUS G721 gas flow meter.

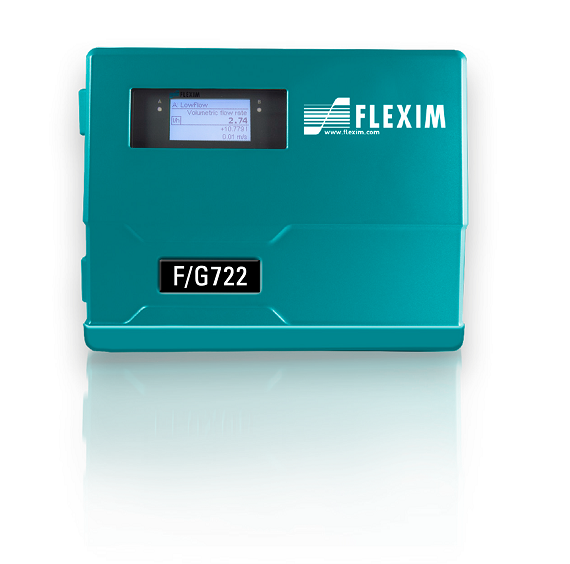

Fluxus G722
GAS FLOWMETER

Fluxus G722

A high performing ultrasonic clamp-on gas flow meter:

  • specifically designed for measurement of dynamic flows in the process industry
  • faster processing capabilities, advanced diagnostics, bidirectional communication protocols, digital outputs and process inputs
  • the G722 offers ease of installation, retrofittable design, accuracy and outstanding performance
  • using the new Synchronized Channel Averaging method (SCA), the G722 ultrasonic flow meter sends signals both in the direction of the flow and against the flow every 1 millisecond.

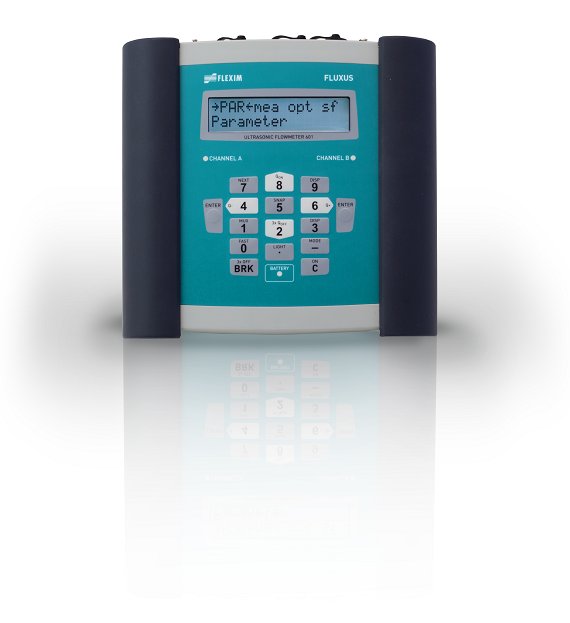

Fluxus G601
GAS FLOWMETER

Fluxus G601

This portable gas flow meter for hazardous areas provides accurate readings without disrupting operations.

  • measures the flow of virtually any gas using FLEXIM's proven transit-time correlation technique.
  • allows for an inherently bi-directional gas flow measurement of operational and standard volume flows.
  • Transducers available for a wide range of inner pipe diameters (0.28 to 63 inches)
