Flexim™ Ultrasonic Clamp-On Flow Meter

The Flexim PIOX®R721 is a specialized transmitter for demanding refractometer applications:

• With ATEX, IECEx and FM certification it enables operation of both the transmitter and R500 sensor in hazardous conditions.
• Expanding the functionality of the R532, it offers multiple communication options and upgraded processing, allowing for the combination of several inputs and outputs to obtain additional analytic measurements.
• The integrated high-power processing can provide detailed analysis of multicomponent liquids based on these values.

The Flexim PIOX®S721 non-invasive ultrasonic flow meter:

• determines the mass flow of liquids by means of clamp-on ultrasonic transducers mounted on the outside of the pipe.
• is the system of choice when substances and processes place highest demands on safety and reliability.
• The PIOX S dynamically infers the fluid’s density using its sound speed and temperature and therefore can provide mass flow in liquids of varying quality.
• This digital mass flow meter measures the sound velocity, thereby determining the density and concentration of the medium inside the pipe.

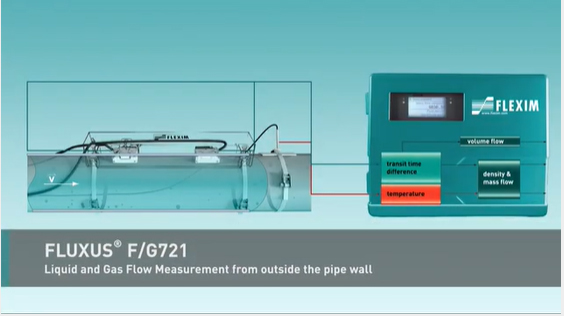

The FLUXUS F721 non-invasive ultrasonic flow meter:

• technological breakthrough in the ultrasonic clamp-on volume and mass flow measurement of liquids.
• state-of-the-art hardware design and powerful digital signal processing
• it surpasses any other non-intrusive ultrasonic flowmeter in terms of accuracy, reliability and versatility.
• Highly sophisticated signal filters, faster than ever processing capacities and advanced measurement algorithms make the FLUXUS F721 liquid flow meter the standard-setting measuring solution for any industrial application

The FLUXUS 5 series WD non-invasive ultrasonic flow meter:

• is the ideal solution for metering points in the drinking water network.
• enables a very simple and cost-effective installation of flow measurement points within an existing water supply network.
• it even measures flow rates as low as 0.03 ft per sec.
• the strong signal output and noise suppression technology make it possible to use the WD Series on all pipe materials, even on such challenging ones as fiber-reinforced plastic (FRP) pipes.

The FLUXUS F831 is FLEXIM's dual channel ultrasonic clamp-on flow meter for bi-directional flow measurement of liquids in hazardous areas (ATEX, IECEx Zone 1 and FM Class I, Div. 1 approved).

• explosion proof housing, intrinsically safe inputs and the corrosion resistant transducers residing outside the pipe wall, but inside the rugged VARIOFIX C mounting fixture, ensuring a permanent contact pressure and high mechanical stability.
• suited for every demanding industrial application in and out of the oil field and the chemical industry.
• comes with carefully matched and temperature compensated transducers (fully ANSI / ASME MFC 5M compliant) providing unmatched zero-point stability and precise bi-directional flow measurement over a wide range of conditions.

• only Clamp-on Ultrasonic flow meter certified for installation in Zone 1 ( FM Class 1, Div. 1 to come) hazardous areas.
• ability to report standard volume flows and API determination in the Hydrocarbon Processing Industry.
• built-in HPI computer calculates API gravity, operational density, density at base conditions and kinematic viscosity.
• Volumetric flow rates reported by the meter are automatically compensated for live temperature and pressure inputs according to industry standards ASTM1250, GPA TP25 and D4311.

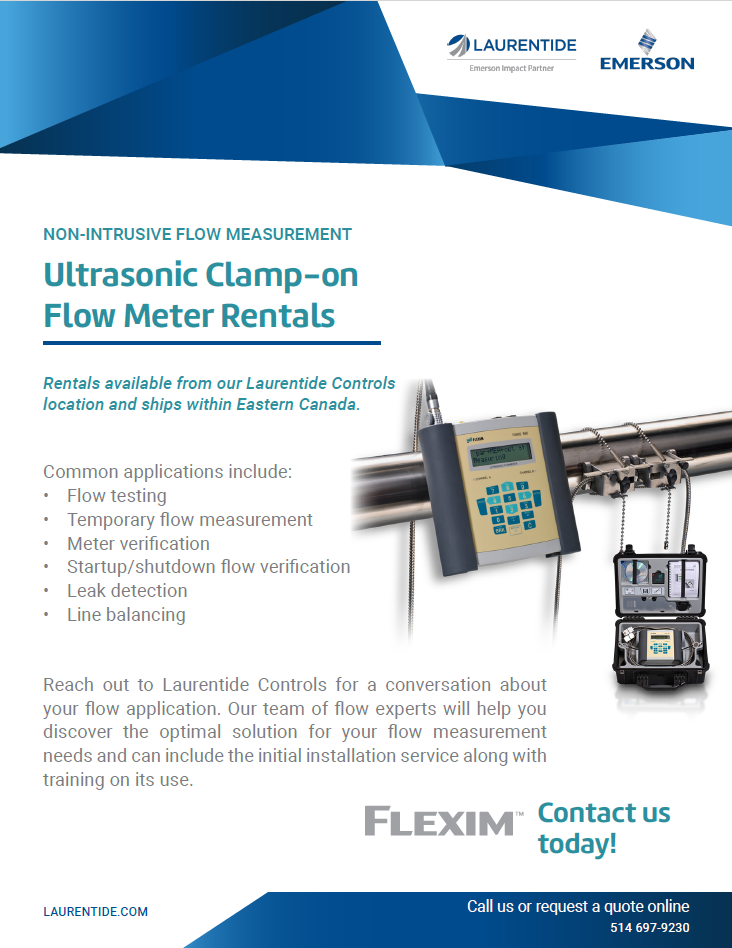

Le débitmètre ultrasonique portable à pince FLUXUS F601 :

• measurement ready in 5 minutes
• the portable clamp-on flow meter of choice for servicing and maintenance activities, the control and auditing of measurement points not covered by permanent meters, or even the temporary replacement of permanently installed flow meters.
• allows for up to 25 hours of autonomous measurement.

The new FLUXUS F608 portable liquid flow meter based on the widely used, highly reliable and versatile F601 :

• specifically engineered for its use within hazardous areas and is FM Class I Division 2 approved
• Offering a high degree of flexibility, without compromising on safety
• The extremely resistant carbon fiber housing, together with the rugged transducer design, ensures high impact protection as well as resistance against oil, water and many other liquids.
• The F608 shares the same efficient battery management as the F601, offering over 14 hours of remote

The new FLUXUS G608 portable gas flow meter is based on the widely used, highly reliable and versatile G601:

• specifically engineered for its use within hazardous areas and is FM Class I, Div. 2 approved.
• An extremely resistant carbon fiber housing, together with its rugged transducer design, resistance against oil, water and many other liquids.
• The G608 portable gas flow meter has the same efficient battery management system as the G601, offering over 14 hrs. of remote measurement time.
• Its application range is unrivalled - from pipes as small as 0.25 to 63 inches inner diameter and temperatures ranging from 14°F to 392°F.

The FLUXUS G831 gas flow meter is a high performing ultrasonic clamp on meter:

• specifically designed for measurement of dynamic flows in hazardous areas (ATEX, IECEx Zone 1 and FM Class I, Div. 1 approved).
• perfectly suited for demanding industrial and process applications in and out of the oil field and the chemical industry.
• explosion proof housing, compact design, and the corrosion resistant ATEX, IECEx Zone 1 – FM Class 1. Div. 1 rated transducers mounted in “fit for purpose” rugged mounting fixtures, the system’s mechanical stability and permanent contact with the pipe surface is assured.

• specifically designed for measurement of dynamic flows in the process industry.
• faster processing capabilities, advanced diagnostics, bidirectional communication protocols, digital outputs and process inputs.
• the G722 offers ease of installation, retrofittable design, accuracy, and outstanding performance.
• Using the new Synchronized Channel Averaging method (SCA), the G722 ultrasonic flow meter sends signals both in the direction of the flow and against the flow every 1millisecond.

The FLUXUS G601 portable clamp-on ultrasonic gas flow meter:

• measures the flow of virtually any gas using FLEXIM’s proven transit-time correlation technique.
• allows for an inherently bi-directional gas flow measurement of operational and standard volume flows.
• featuring an ergonomic design, which offers simple handling and maximum ease of use, the G601 was designed to easily withstand rough industrial environments.
