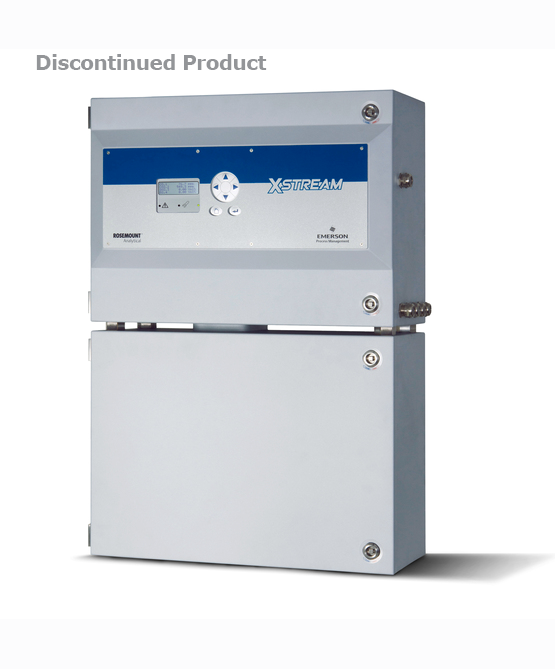

Rosemount™ X-STREAM X2XF Continuous Gas Analyzer (Obsolete)
rosemount x-stream x2xf
rosemount x-stream x2xf
Rosemount™ X-STREAM X2XF Continuous Gas Analyzer (Obsolete)
This product is now obsolete.
Relevant documents and drawings are listed below.
Contact your local Emerson representative for your measurement needs.
Rosemount™ X-STREAM X2XF Continuous Gas Analyzer (Obsolete)

Specs

Weight
Up to 25 kg (55.1 lbs) (up to 45 kg (99.2 lbs) for dual compartment) depending on configuration
Analog Output
1–4, individually optically isolated 4(0)–20 mA (RB ≤ 500 Ω)
Analog Input
2 analog inputs, 0–1(10) V (Rin = 100 Ω) or 4(0)–20 mA (Rin = 50 Ω)
Relay Outputs
4 status relays acc. NAMUR NE 107 or e.g. concentration thresholds, valve status notification dry contacts:
1 A, 30 V
Communication Protocol
RS 485 / 232C with Modbus RTU. Optional: Ethernet with Modbus TCP
