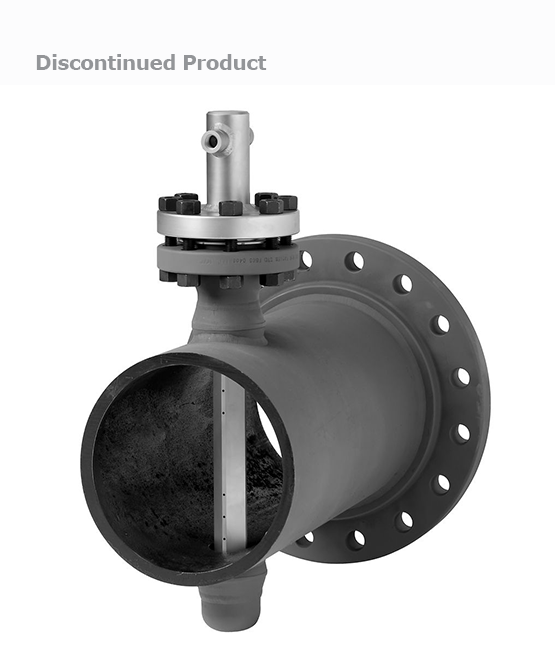

Rosemount™ 585 Annubar™ Primary Element for Severe Service
Rosemount™ 585 Annubar™ Primary Element for Severe Service
This product is now obsolete.

Relevant documents and drawings are listed below.
Contact your local Emerson representative for your measurement needs.
Rosemount™ 585 Annubar™ Primary Element for Severe Service

Specs

Max. Operating Pressure
ANSI B16.5 2500#
Process Temperature Range
1500 °F (815 °C)
Fluid Type
Liquid, gas, steam
Process Wetted Material
316/316L SST, Alloy C-276, Alloy 800H
Warranty
Up to 5-year limited warranty

Features

  • Sensor construction offers capabilities for severe service and high temperature applications (1500 °F / 815 °C)
  • Available with diverse material options to meet a wide range of process demands
  • Symmetrical sensor design allows for reverse flow measurements
  • Lightweight design at large line sizes provides a cost-effective primary element solution
  • Wide range of process mounting options provide significant mounting flexibility for many process applications
